APC M113P

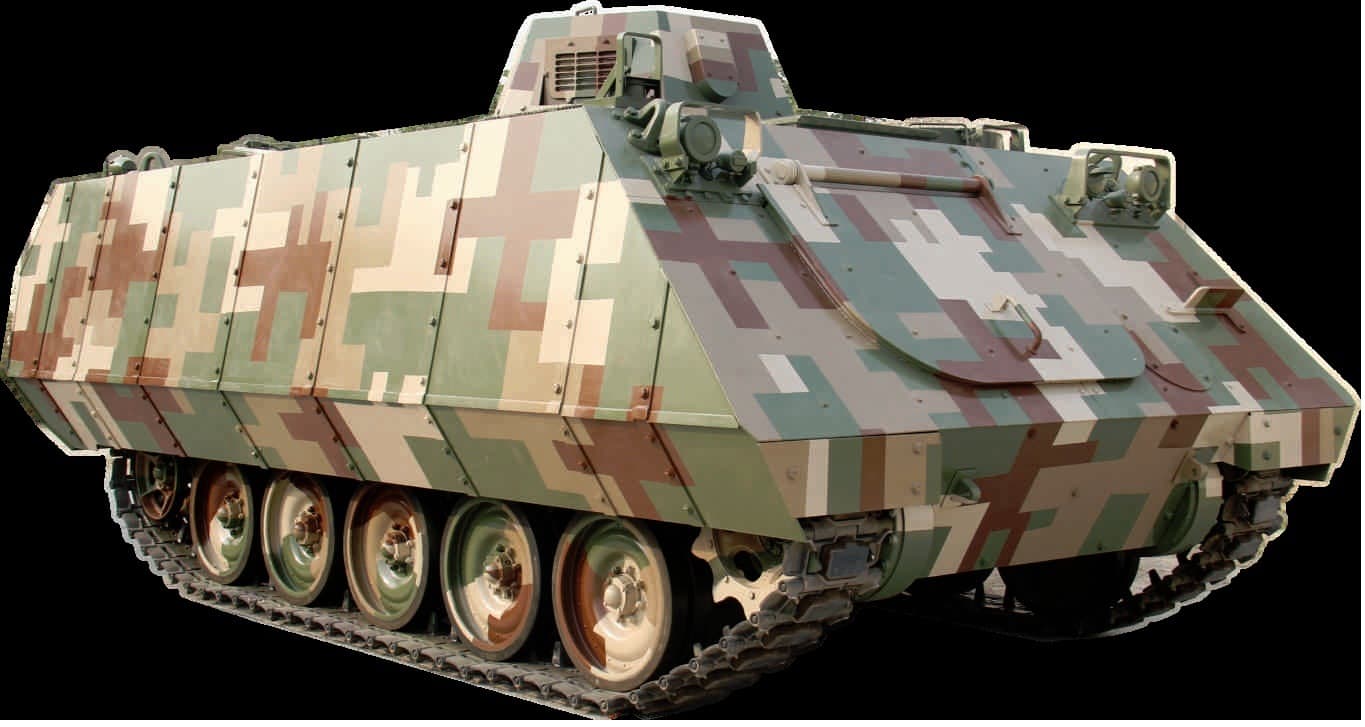

APC ‘TALHA’ has been designed and manufactured by APC Factory and belongs to APC M113 Family of Veh (FOV). There is a flexibility in the design that the Engine compartment can accommodate power pack with 212 HP as well as 265 HP Detroit Diesel 6V53/T turbocharged engine. TALHA is an all terrain, amphibious infantry support vehicle with 12.7 mm machine gun as its main armament. Adequate space in crew compartment provides excellent crew comfort. Survivability is enhanced through use of external fuel tanks. Various forms of bolt-on armour can be added in increase armour protection is required for the vehicle. It can negotiate 60% gradient and 30 degree side slope.
| CHARACTERISTICS | |
|---|---|
| Armour System | Bolt-on spaced/oblique lightweight ballistic steel armour system. |
| Protection of Vehicle | 12.7mm AA Gun AP rounds at 50 meters with straight line of fire. Modular shape with basic APC hull divided into 6 x main regions. |
| Multi-Hit Capability | Designed armour provides excellent multi-hit capability, and each panel can sustain multiple shots. |
| Mounting System | Armour plates mounted on vehicle through bolt-on system relying on Aluminium Armour Frames System bolted through specialists. It allows easy installation and positioning in field conditions and serves as additional protection at interfaces. |
| Rotating Turret | With 2 view glasses providing protection against 12.7mm AP rounds and has the ability to engage targets all around (360°). |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Engine | Detroit 265 HP |
| Transmission | Allison TX100-1A |
| Seating Capacity | 2+10 (12) |
| Base Armour | Ballistic Aluminium |
| Add on Armour | Ballistic Steel-Based Spaced Armour |
| Turret | 360° Rotation |
| Net WT of Add On Armour | 875 Kg |
| Pay Load | 1500 Kg |
| Fuel Tank | Internal |
| Power/WT Ratio | 22.34 HP/Ton |
| Protection | 12.7mm API at 50 meters distance |
| ADDITIONAL MODIFICATIONS |
|---|
| Existing external fuel tanks removed and replaced with internal fuel tanks as configured for APC M113A1. |
| Rear door removed and replaced with a rear door for mounting/dismounting personnel. |
| Options for ramp door with reinforced mechanical spring system also available. |
| TECHNICAL SPECIFICATIONS OF ARMOUR | ||
|---|---|---|
| Feature | Type of Armour | Panels |
| Upper side plate | Spaced Armour | 6 (each side) |
| Lower side plate | Spaced inclined Armour | 6 (each side) |
| Upper Nose Plate | Spaced Armour | 3 |
| Lower Nose Plate | Spaced Armour | 2 |
| Front Straight Plates | Spaced Armour | 3 |
| Rear Plate | Spaced Armour | 3 |
| Turret | Spaced Armour | 2 |
| MAIN CHARACTERISTICS | |
|---|---|
| Weight, combat loaded | 11,860 Kg |
| Weight, curb | 10,360 Kg |
| Length | 130 inches |
| Width | 122.06 inches |
| Height without Turret | 92 inches |
| Height with Turret | 97.5 inches |
| Speed (level) | 62 km/h |
| Acceleration (0-32 km/h) | 9 seconds |
| Gradient | 60% |
| Side Slope Negotiation | 20% |
| Braking Distance at Speed (32-0 km/h) | 26 feet |
| Drift (steering) | 10 feet while traveling between 20-30 mph |
