tank01

APC QASWA

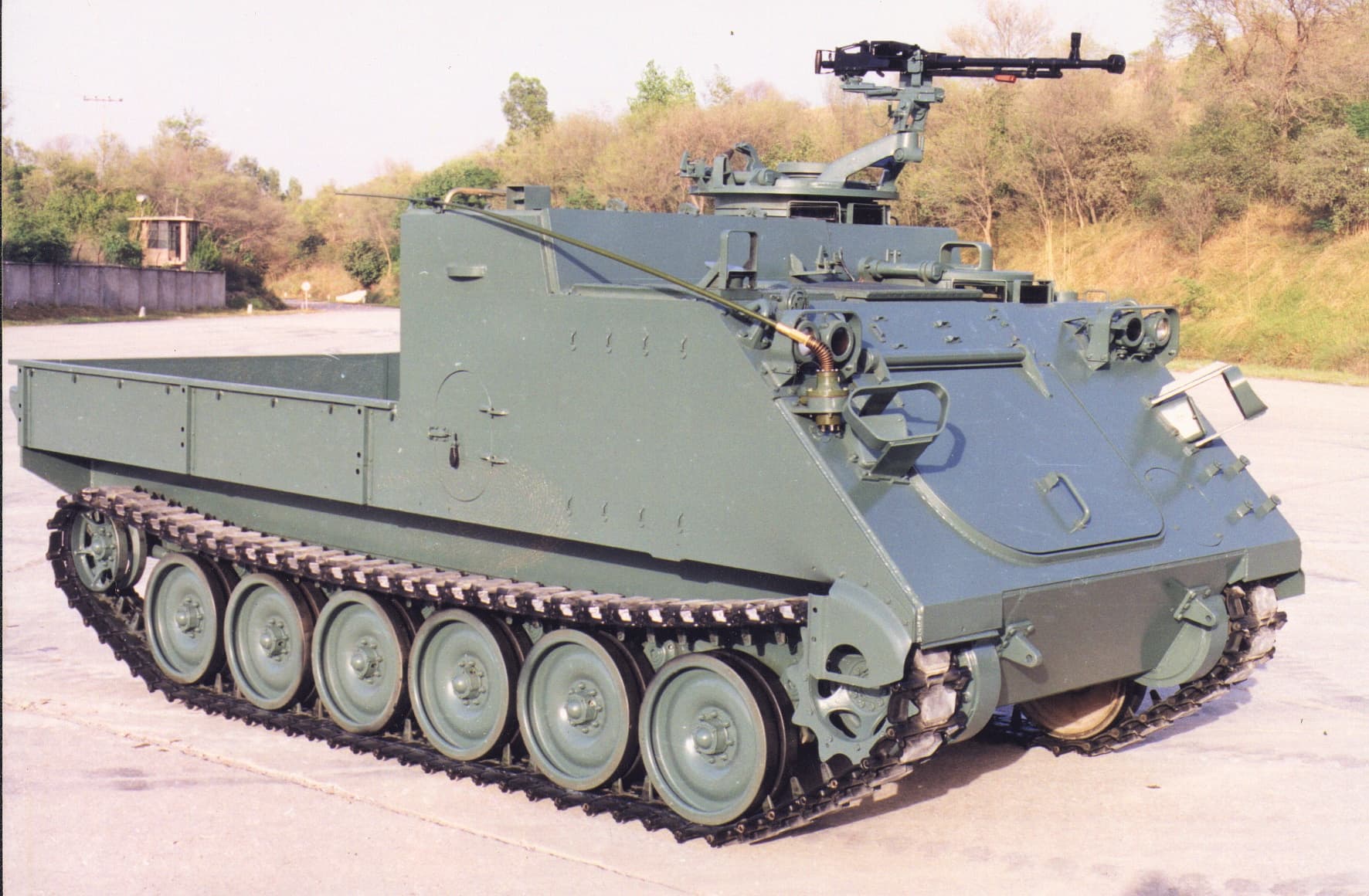

Logistic Vehicle with a stretched hull is one such derivative of M113 (FOV) which would significantly enhance logistic compatibility with operation echelons. The Logistic Vehicle designed and manufactured at HIT and is characterized by unique features. It is light weight with armour protection for crew and resembles a flat bed truck in both appearance and application. It uses the M113P power plant, track and suspension to ensure commonality. The Logistic Vehicle can be used for carrying of POL, rations, ammunition and supplies across all types of terrain. The cargo compartment which can carry a load upto 6 tons can be protected with a tarpaulin cover. The vehicle platform can also be used for other adaptations such as weapon station, missile launcher, radar, TCV, ambulance, maintenance vehicle etc.

ARC M113P specifications image.
GENERAL
Length5.6 M
Width2.54 M
Height2.6 M
Crew2 (1 X Driver, 1 X Commander)
Curb Weight10.345 Ton
Combat Weight14.5 Ton
PERFORMANCE
Speed (Level Land)35 Km/H
Gradient60%
Side Slope30%
Trench1.6 M
Water FordingAmphibious
POWER PACK
Engine265 HP
TransmissionAutomatic
Pivot Break TypeDisc
PROTECTION
ArmourAluminum Alloy
